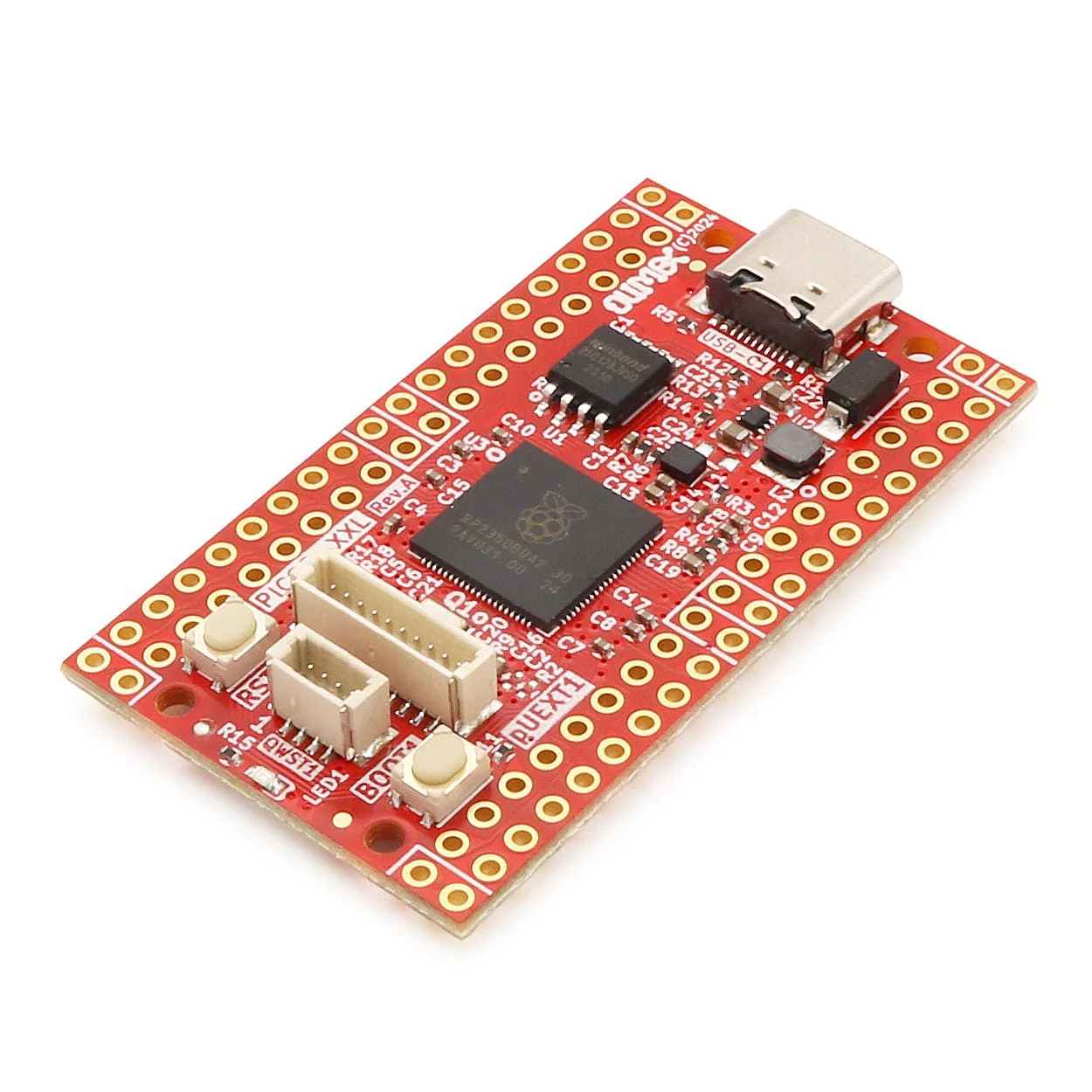

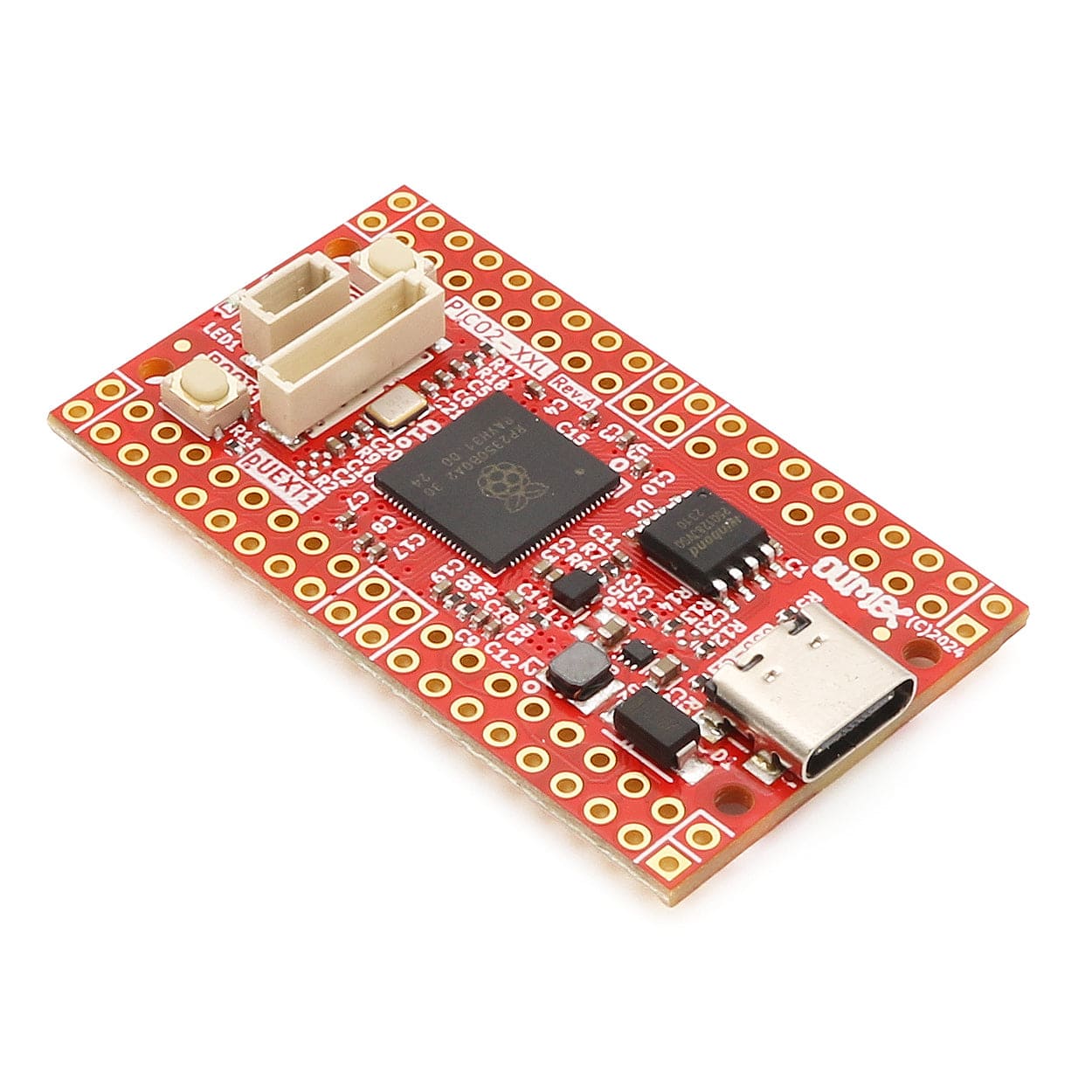

The Olimex PICO2-XXL is an RP2350-based development board exposing all 48 GPIO from the Raspberry Pi RP2350B microcontroller!

The board features USB-C for power and programming, RESET and BOOT buttons, upright Qwiic/Stemma QT port, status LED and a pUEXT connector.

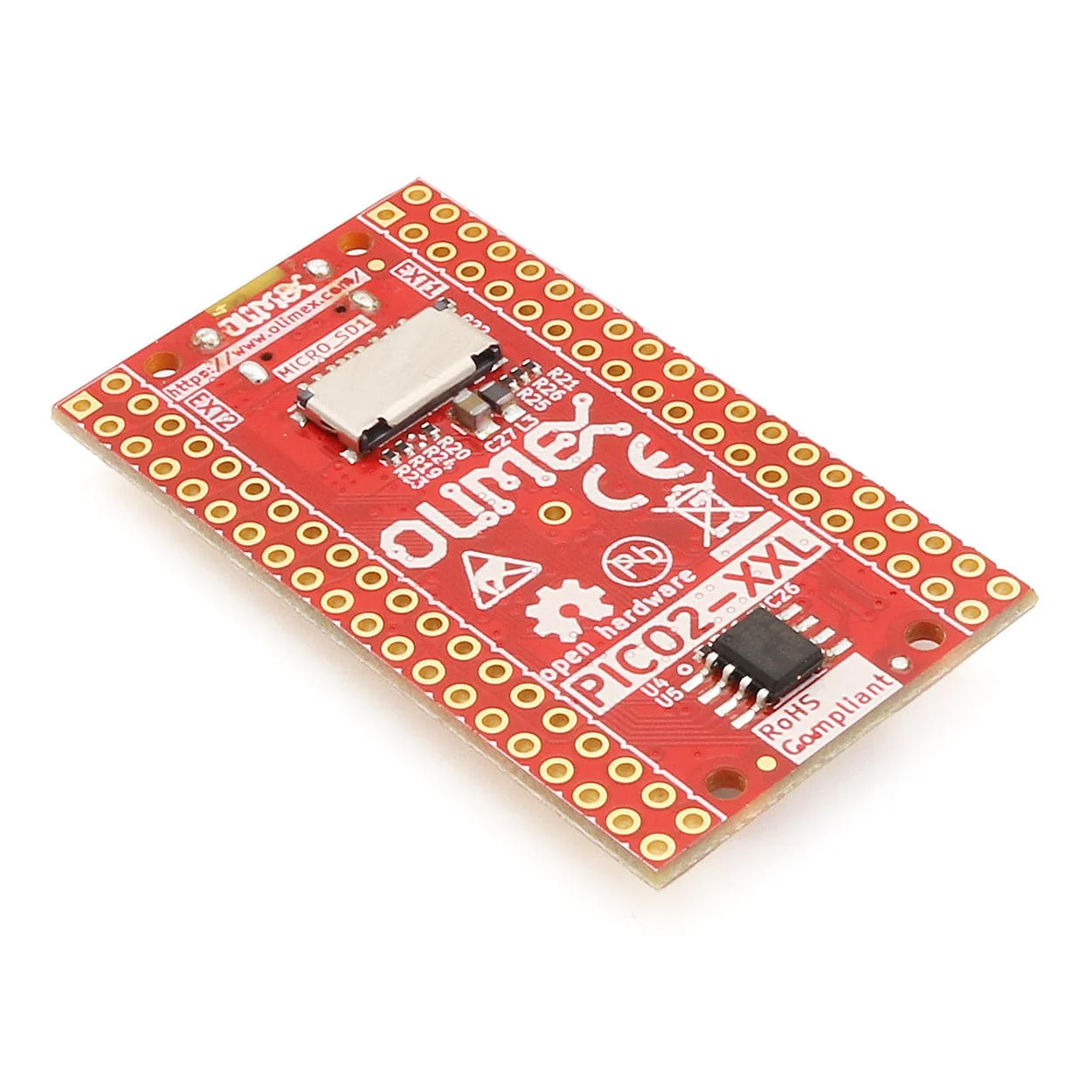

This XXL version of the Olimex PICO2 board range comes with some extra features - 16MB external flash (vs the 2MB on the PICO2-XL) and a compact MicroSD slot on the underside of the board.

The board features unpopulated pads for adding your own headers or soldering wires directly.

We also stock the Olimex PICO2-XL, a more affordable variant with 2MB external flash, no PSRAM and no MicroSD slot.

Features

• RP2350B Dual Cortex-M33 or dual RISC-V @ 150MHz
• 520 KB on-chip SRAM
• USB-C connector
• BOOT and RESET buttons
• 16MB QSPI flash
• 8MB QSPI PSRAM
• MicroSD card slot
• UEXT connector
• Qwiic/Stemma connector
• Status LED
• All 48 GPIOs exposed
• Dimensions (50x28)mm

Resources

Documentation

• PICO2-XXL pinout
• PICO2-XXL user manual
• PICO2-XXL EU declaration of conformity
• PICO2-XXL UKCA declaration of conformity

Hardware

• PICO2-XXL schematic in PDF format
• PICO2-XXL source CAD files on GitHub

Software

• Raspberry Pi C-SDK
• Micropython
• Arduino
• There isn't a CircuitPython version for this board yet, however one of our customers Leon found that the version for the Pimoroni PGA2350 works well (after not having much success with the PICO2 version)

Package Contents

• 1x PICO2-XXL Development board
