Grove Cable Pigtail - 2mm pitch 100mm long

Grove Cable Pigtail - 2mm pitch 100mm long

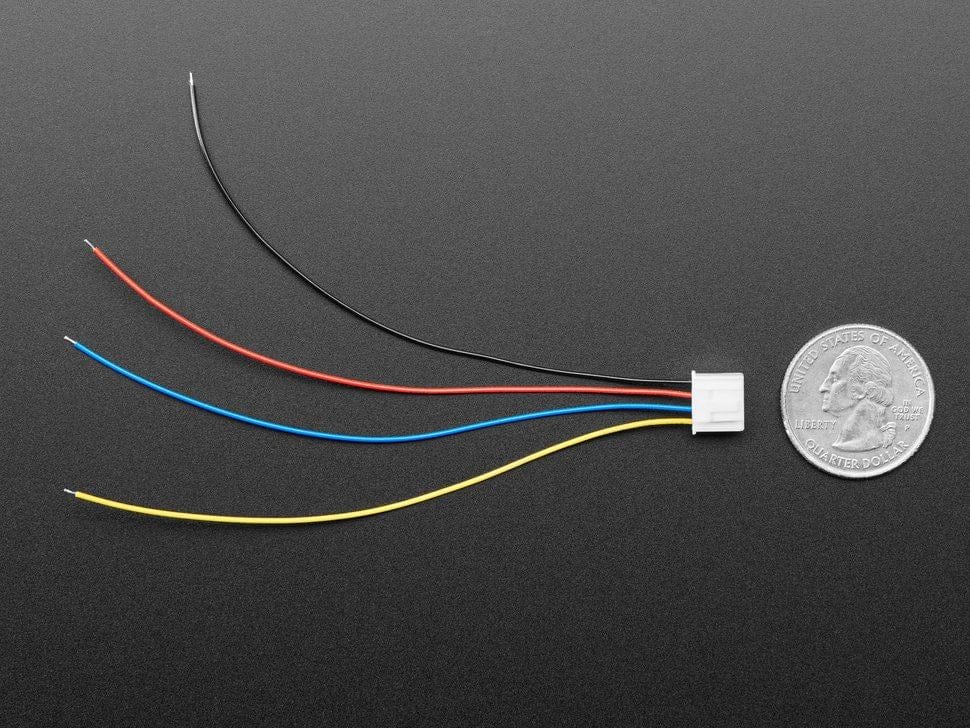

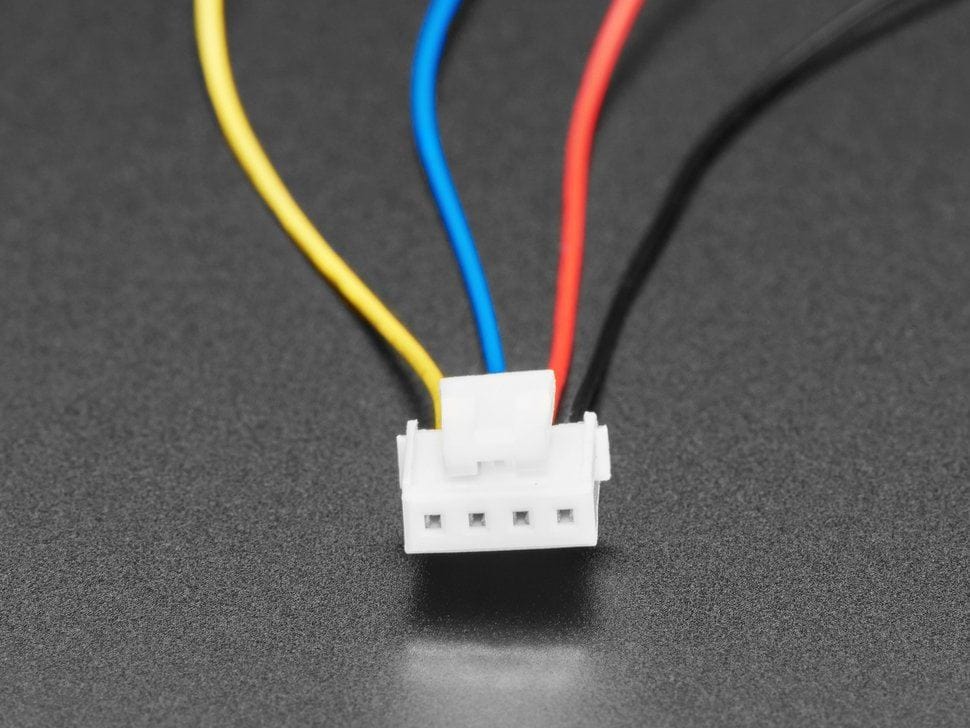

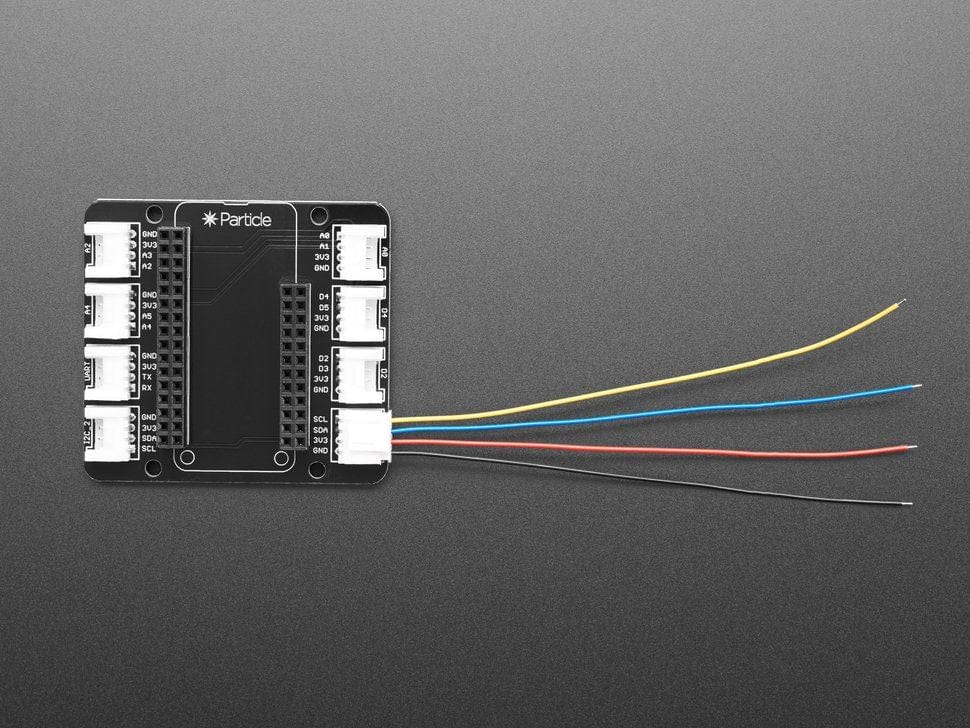

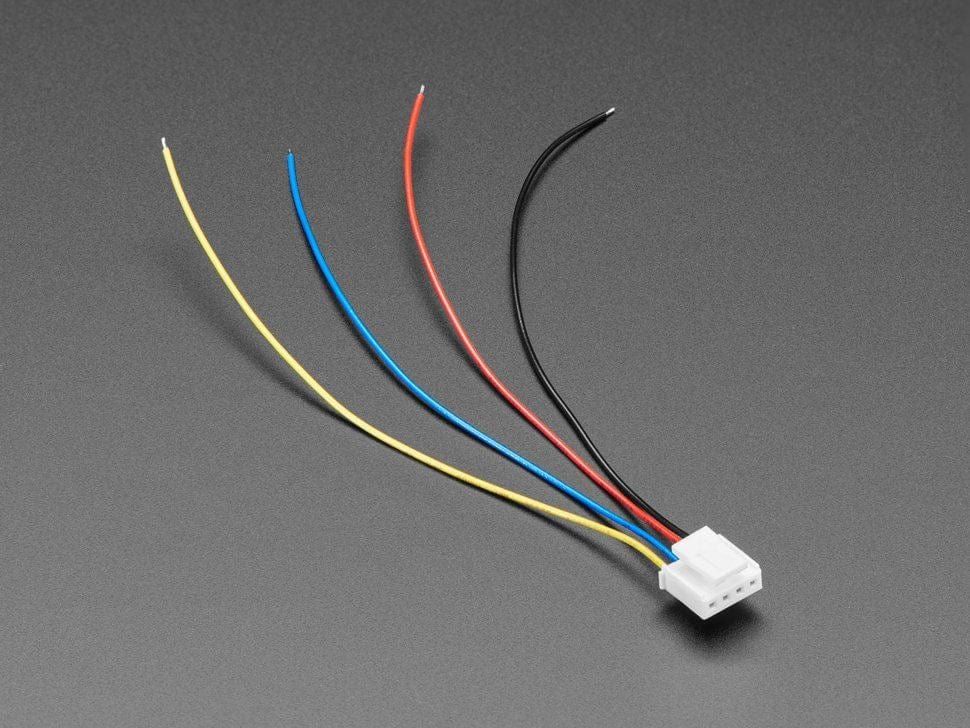

If you'd like to make a connection to a board or breakout with Seeed Grove connection, this 100mm long 4-wire cable is fitted with a Grove connector and four bare wires.

Please note you will have to watch for voltages on the power/signal pin when using 3V-only sensors, because Grove boards that are 5V logic like many Arduino UNO-compatibles.

The colors are:

  • Black for GND
  • Red for V+ - Can be 3V or 5V power depending on the microcontroller board!
  • Blue for SDA
  • Yellow for SCL

Note these are not JST cables, and won't fit in JST PH sockets!

Technical Details

  • Diagram
$0.41

Original: $1.36

-70%
Grove Cable Pigtail - 2mm pitch 100mm long—

$1.36

$0.41

Product Information

Shipping & Returns

Description

If you'd like to make a connection to a board or breakout with Seeed Grove connection, this 100mm long 4-wire cable is fitted with a Grove connector and four bare wires.

Please note you will have to watch for voltages on the power/signal pin when using 3V-only sensors, because Grove boards that are 5V logic like many Arduino UNO-compatibles.

The colors are:

  • Black for GND
  • Red for V+ - Can be 3V or 5V power depending on the microcontroller board!
  • Blue for SDA
  • Yellow for SCL

Note these are not JST cables, and won't fit in JST PH sockets!

Technical Details

  • Diagram
