Looking for a medium-sized Display for your next project? Waveshare's 800x400 5-inch Capacitive Touchscreen LCD is the perfect solution for your next Raspberry Pi or Raspberry Pi Zero project.

This 5-inch display is Raspbian and Retropi compatible and is completely driver free which makes implementation super easy. When used in conjunction with a Raspberry Pi, five touch-points are supported. Ubuntu, Kali, and Windows 10 IoT are supported as well but feature single-point touch recognition. Windows versions 7-11 are also supported with five-point touch recognition.

Additionally, this display features a 6H hardness toughened glass panel for added protection.

Online development resources are available, which include wiring guidance and example code, with additional information being found on the Waveshare Wiki.

Specifications

• Operating Voltage: 5V

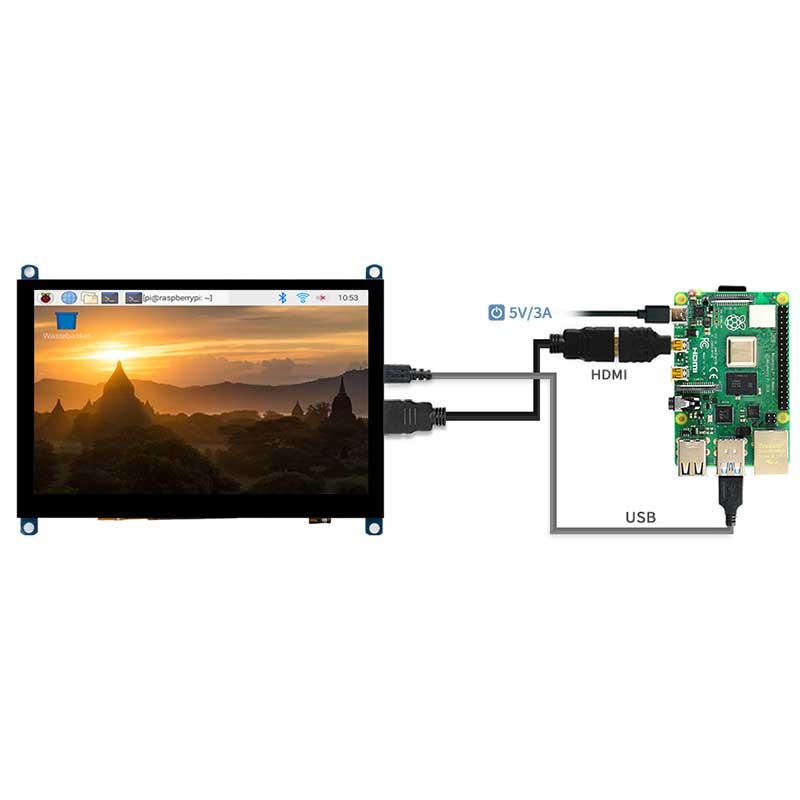

• Connection Interface: HDMI & USB
• Display Panel: TFT
• Resolution: 800x400 pixels
• Display Size: 5-inch

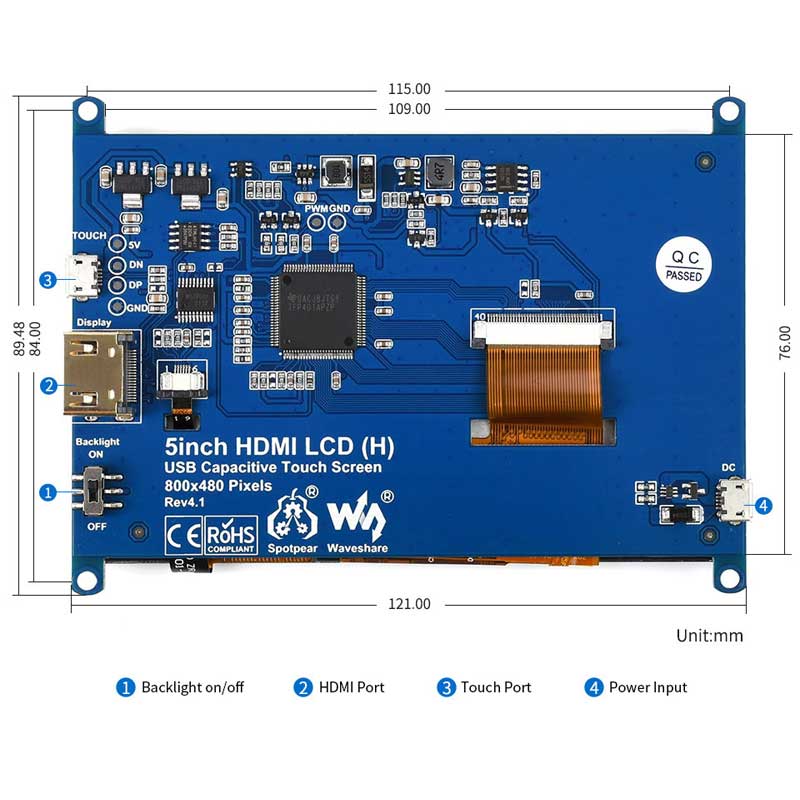

• Dimensions: 121 × 89.48 mm
• Touch Screen Type: Capacitive

Package Contents

• 1x 5" HDMI LCD (H) V4
• 1x HDMI cable
• 1x HDMI to Micro HDMI Adapter
• 1x USB type A plug to micro B plug cable
• RPi screws pack (4pcs)

Resources

• Waveshare Wiki
