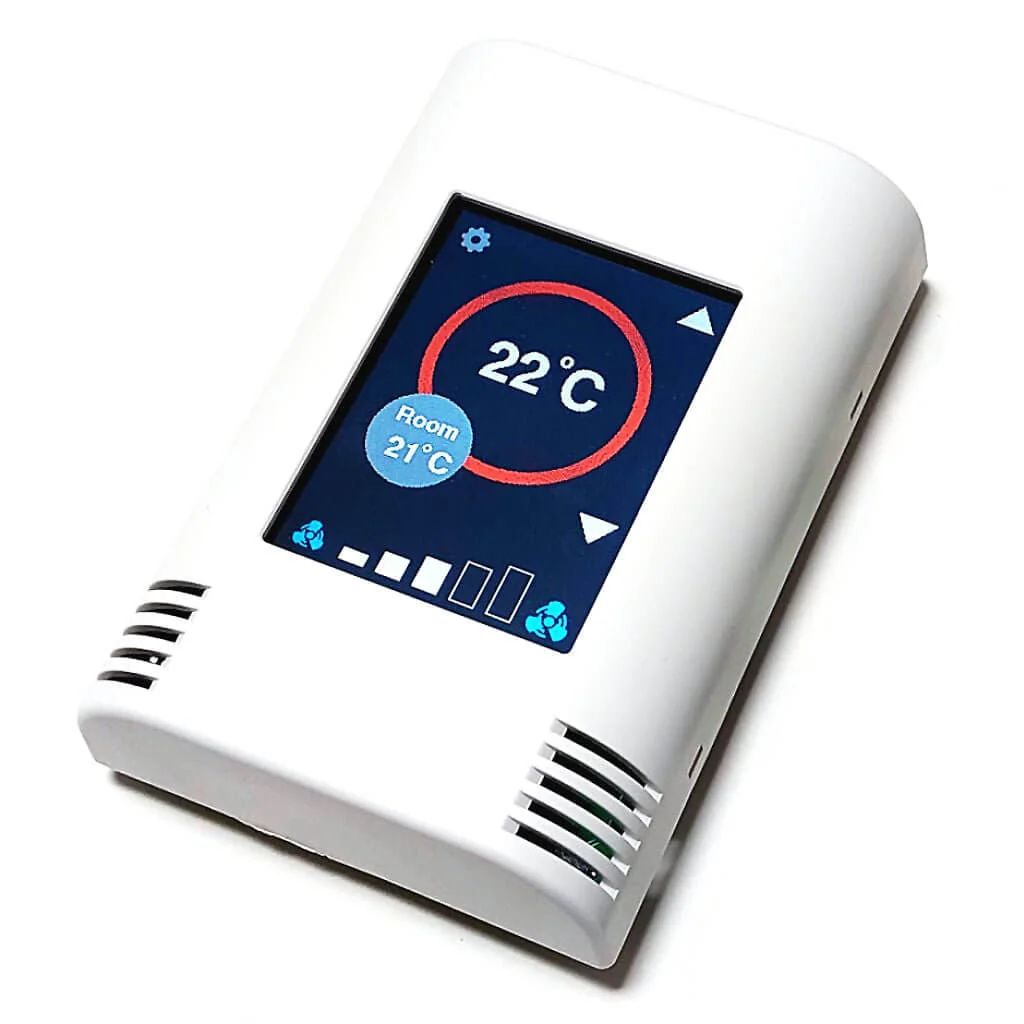

The AZ-Touch MKR V2 is a fully-assembled wall-mount enclosure compatible with a range of Arduino MKR and Nano boards*, complete with a 2.8" resistive touch screen for making your own professional home automation interface!

New V2 Version: This new version uses a larger 2.8" display and is now compatible with both the Arduino MKR series and Nano 33 IoT, BLE, BLE Sense and RP2040!

This assembled version removes the need to solder parts and comes with a host of handy features such as the included 2.8" display, buzzer, space for batteries/antennas, vertical and horizontal mounting, wide-range power supply (9-35V) and a breadboard area for your own additional circuits.

*Please check the compatibility section below to identify compatible MKR/Nano boards and shields. MKR/Nano board not included!

Features

Touchscreen

2.8" touchscreen with integrated ILI9341 display controller, communication via SPI. Touch controller Type XPT2046 and resistive touch.

Space for Lithium Battery and Antenna

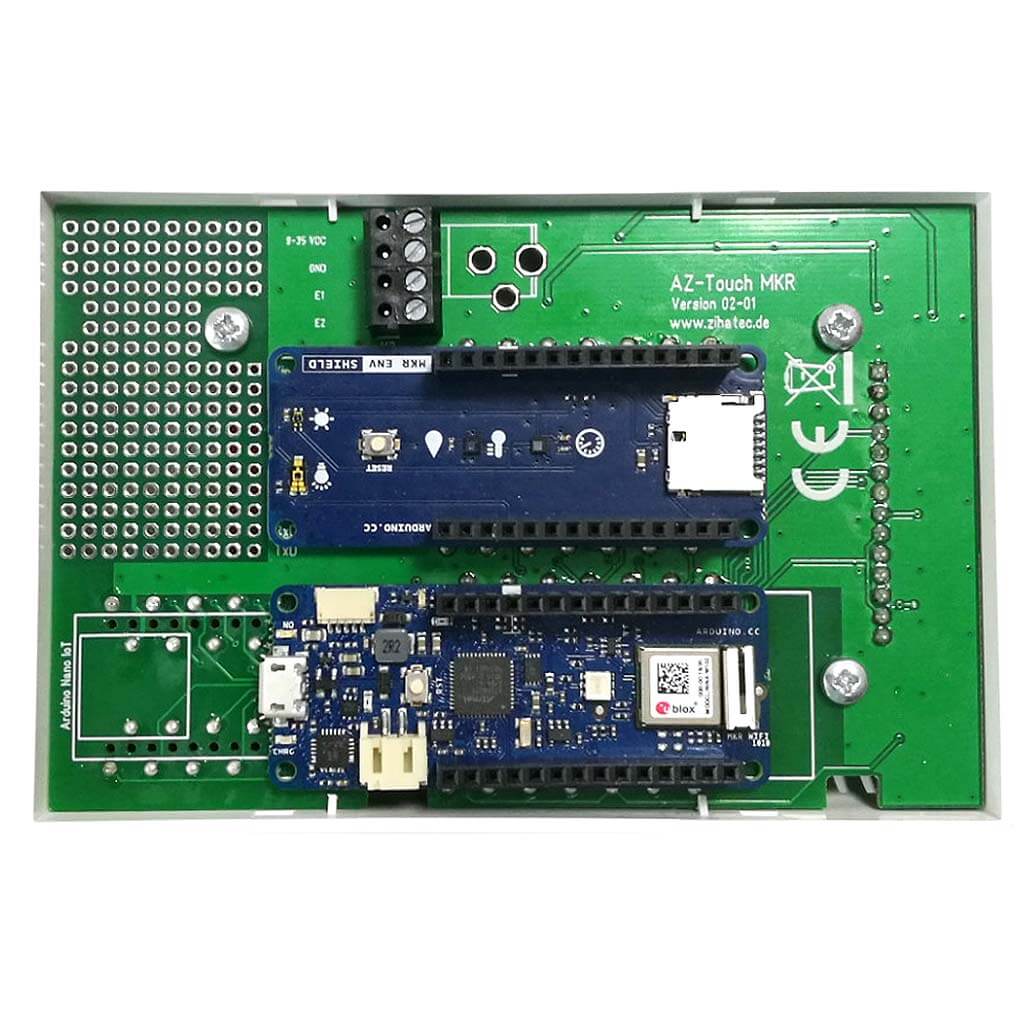

The assembled PCB inside the unit comes with two breakthroughs for an antenna and a lithium battery cable (not included). The battery and antenna can be placed inside the device beside the touchscreen.

Vertical and horizontal mounting

Depending on your project and your software you can mount the enclosure set vertically or horizontally, directly on the wall or in front of a flush wall mount box.

Easy connection

A removable terminal block makes installation easier. The PCBs are mounted on the enclosure allowing a rapid substitution of the devices when required, facilitating the assembling/disassembling of the enclosure.

Power Supply

The AZ-Touch PCB comes with an integrated switching regulator for voltages from 9V to 35V DC. You can connect the power supply via the terminal or an optional DC socket.

Acoustics

The integrated piezo buzzer (resonance frequency 4kHz) can be used to generate acoustic feedback, acknowledge tones or melodies.

Own circuits

A small breadboard area at the top of the PCB can be used for your own extensions. Two poles of the terminal are connected together with some GPIOs and the voltages with solder joints next to the breadboard.

Project Examples

Codelock Example | Source code
Thermostat example | Source code
Weather Monitor example | Source code
Home Automation remote controller example
Asset Tracker example
RFID Access Control example
Covid Tracker (Arduino MKR Wifi 1010 source code)

Resources

Datasheet
Assembly Instructions
Schematic
Dimensions: 120mm x 80mm x 33mm

MKR/Nano Compatibility

The AZ-Touch MKR V2 can be used with the following Arduino boards.

MKR Series

MKR Zero
MKR WiFi 1010
MKR WiFi 1000
MKR FOX 1200 (Sigfox)
MKR WAN1310 (LoRa)
MKR GSM 1400
MKR NB 1500 (NB-IoT)

Nano Series

Nano 33 IoT
Nano 33 BLE
Nano 33 BLE SENSE
Nano RP2040

NOT compatible with the Arduino Portenta and the classic Arduino Nano (with ATMEGA processor)

MKR Shield Compatibility

For the Arduino MKR series, a number of different shields are available. Not all of them will fit inside this enclosure. Please see the compatibility list below:

MKR 485 (RS422 / RS485)
MKR MEM (SD card & serial Flash)
MKR CAN (CAN BUS)
MKR ENV (sensors)
MKR MBUS (metering)
