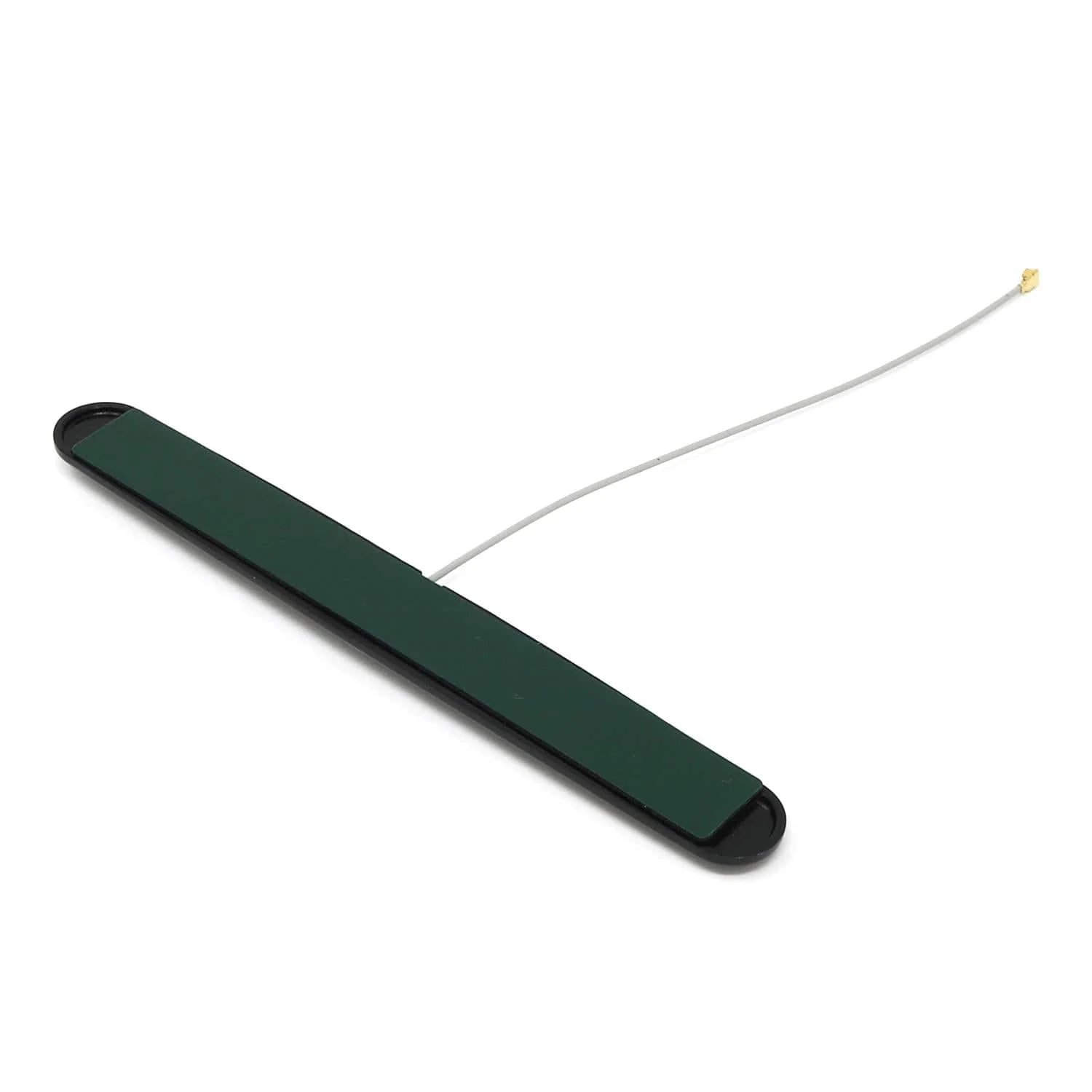

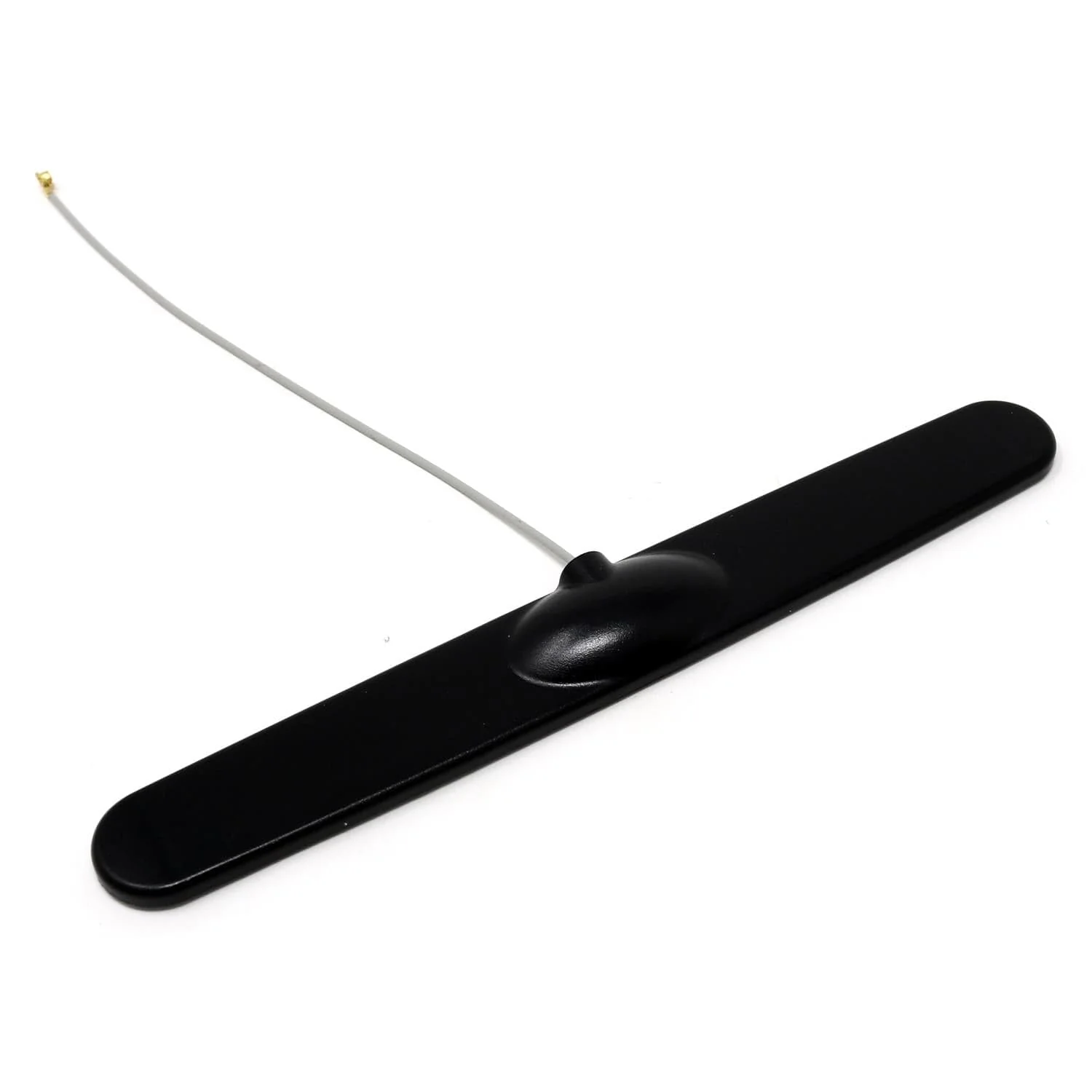

A single solution to connect your smart devices to the Cloud. The antenna supports the GSM 850 / 900 / 1800 / 1900 MHz and UMTS bands. Designed for small devices, this antenna will work when used as a wireless terminal, gateway, or access point. It is a ground plane independent design, housed in a robust waterproof plastic cover.

It can be used outdoors in any kind of telemetry project, as well as for discreet in-vehicle installations. It comes with a high-grade adhesive tape that allows the antenna to be attached to any surface.

Please note: the antenna is not intended to be mounted on large metallic surfaces, since it would affect the antenna’s coverage. It works great on other materials such as glass, plastic, wood, or cardboard.

Compatible Boards

This penta-band antenna is supported by the following official Arduino boards:

Arduino MKR FOX 1200
Arduino MKR WAN 1300
Arduino MKR WAN 1310
Arduino MKR GSM 1400
You can also connect the antenna to any other boards with a micro UFL connector.

Please note: for best result, do not attach the antenna to a metallic surface like car chassis etc.

Specifications

Datasheet

GSM 850 (824-894 MHZ)
- Gain <0 dBi
- VSWR <2
- Impedance 50 OHM
- Polarization linear

GSM 900 (890-960 MHZ)
- Gain <1 dBi
- VSWR <2
- Impedance 50 OHM
- Polarization linear

GSM 1800 (1710-1880 MHZ)
- Gain <1 dBi
- VSWR <2
- Impedance 50 OHM
- Polarization linear

GSM 1900 (1850-1990 MHZ)
- Gain <0 dBi
- VSWR <2,2
- Impedance 50 OHM
- Polarization linear

Main Specifications UMTS (1900-2200 MHz)
- Gain <0 dBi
- VSWR <2,5
- Impedance 50 OHM
- Polarisation linear

Other Characteristics
- Dimensions 130x16x5mm
- Cable length: 120 mm / 4.75 inch
- Weight: 1 gramm
- Connector: micro UFL
- Housing: plastic
- Support: double-sided tape

Arduino Accessories

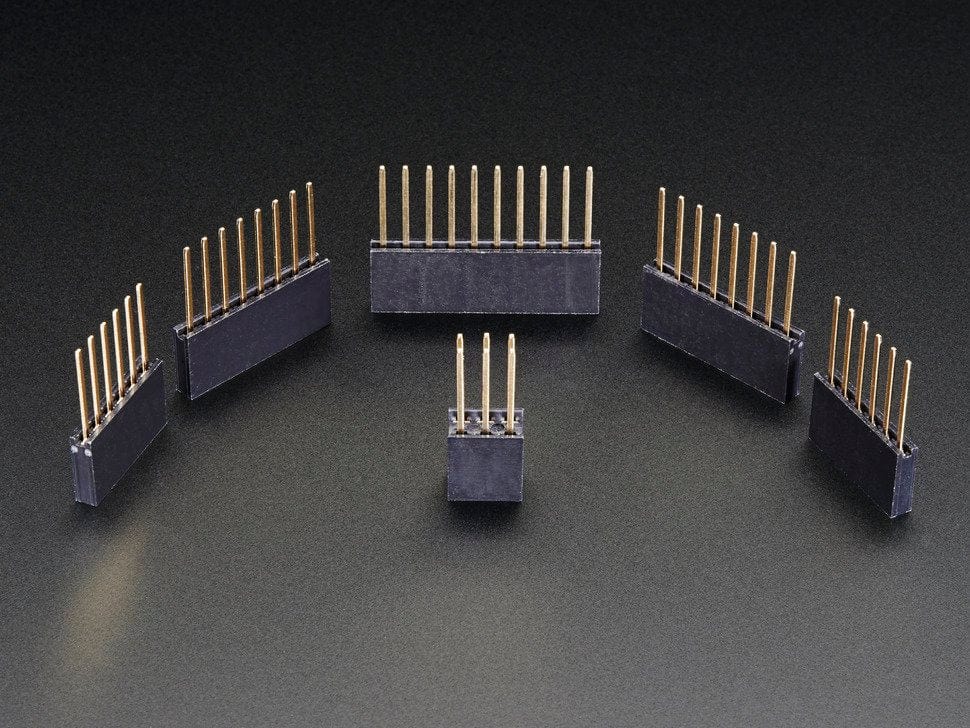

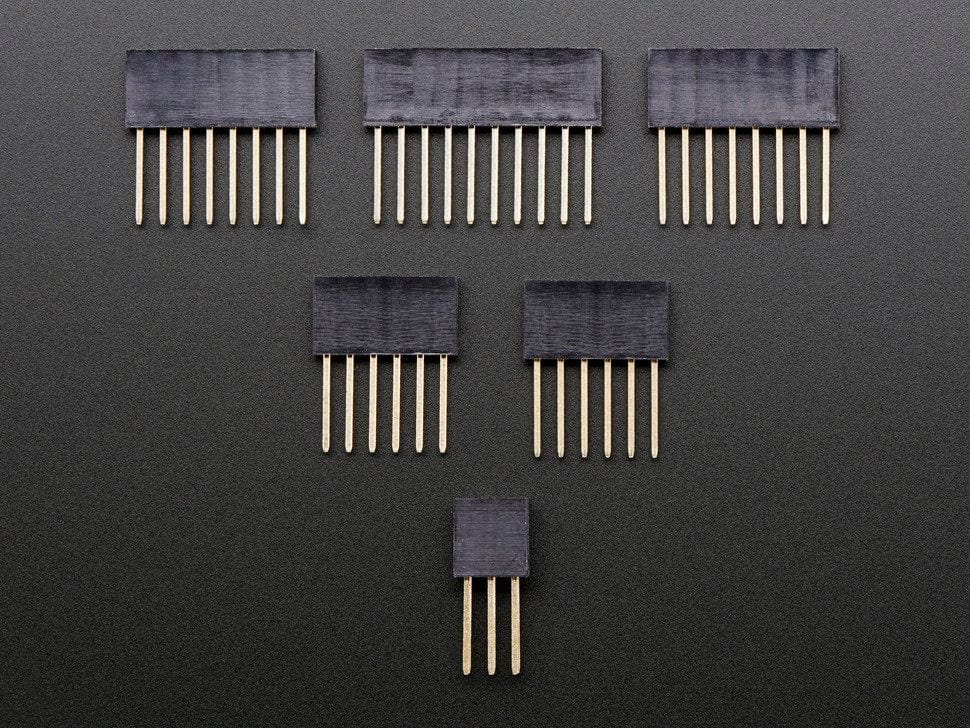

Shield stacking headers for Arduino (R3 Compatible)

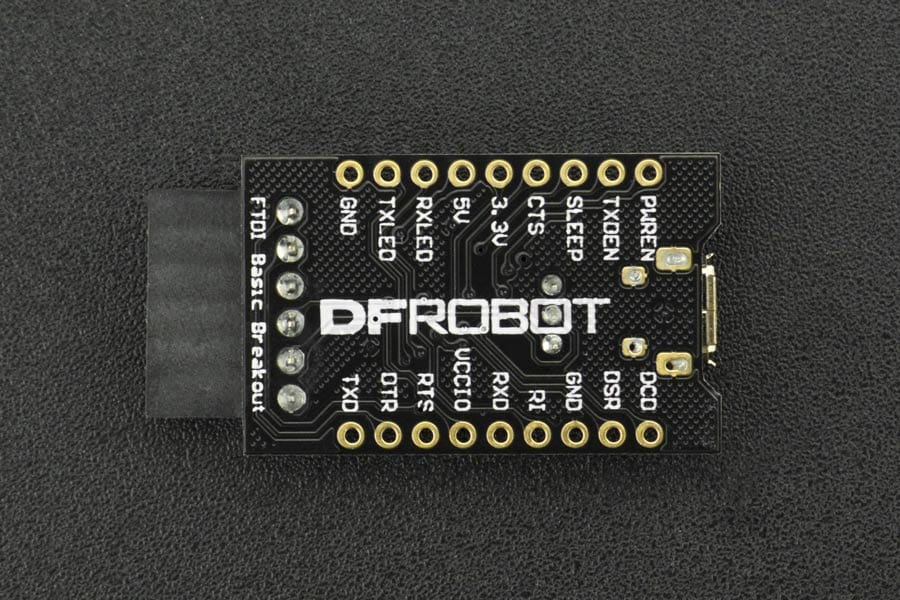

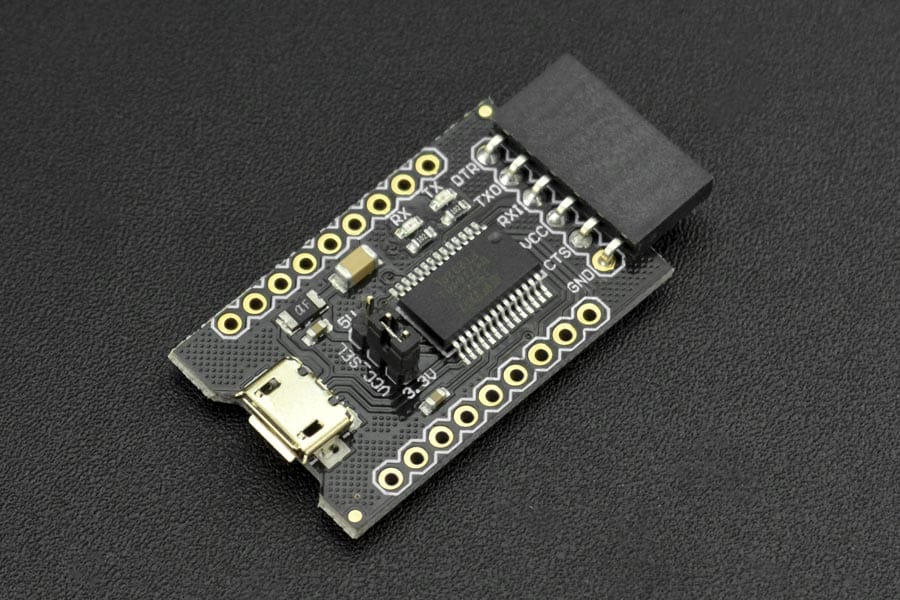

Fermion: FTDI Basic Breakout 3.3/5V (Arduino Compatible)
